Occkic 3S 4S 6S 8S 17S 6A Active Equalizer Whole Group Balancer Lifepo4 Lithium Active Batter

Features:
1.Multiple models, including 4S, 6S, and 17S, are available for lithium ternary, lithium iron phosphate, and lithium titanate,
2.Hybrid equalization, reducing complexity to simplicity without the need to detect the voltage difference between batteries, directly transferring energy between adjacent capacitors and then high-frequency equivalent parallel connection. The microcontroller main control is combined with low resistance MOS transistors, providing excellent low-power performance and efficient high-precision equalization effect. Long term use of equalization accuracy can reach 0.005V-0.01V, with lower circuit power consumption.
3.The operating power consumption is approximately 1.5-2.5mA, and the battery cell voltage can be automatically turned off when it is lower than 2.5V, or manually turned off through a switch.
4.The maximum equilibrium current is about 6A, and the greater the voltage difference, the greater the current. When the voltage difference is 1V, it is about 6A,; 0.5V approximately 3A; 0.2V is about 1.2A (the above parameters are 4S power lithium battery, combined with 10CM 0.75mm square meter, measured, and the voltage collection measurement point is the onboard plug).
5.The combination can be expanded, and suitable module combinations can be selected based on the battery series connection method. The modules can be reduced or expanded for use, and can be reduced or cascaded with multiple boards for expansion. Please refer to the diagram for specific connection methods.
Parameters:

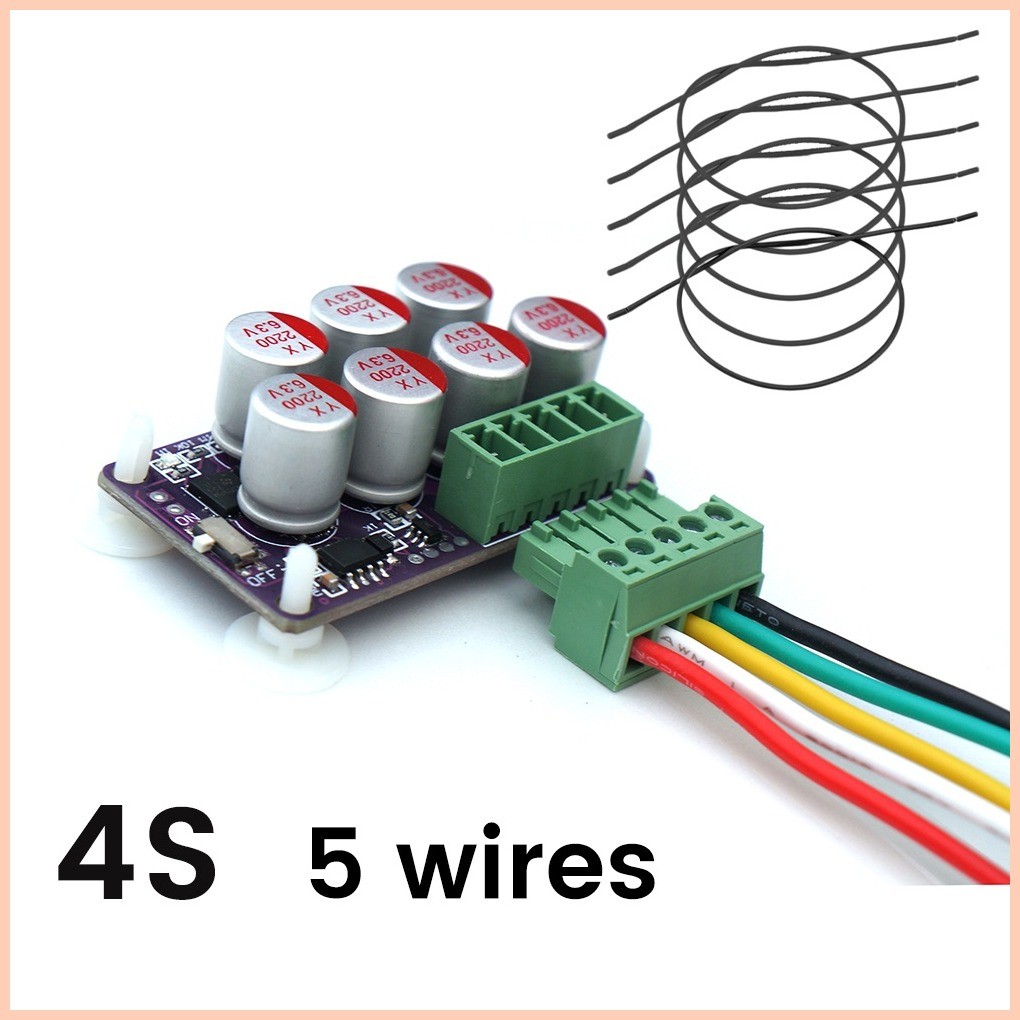

Model specifications; 4S/6S/17S
Balancing method: active balancing of energy transfer
Balanced current: maximum 6A (the greater the voltage difference, the greater the current, and vice versa)
Equalization accuracy: 0.01V
Operating power consumption: 1.5mA-2.5mA
Low voltage protection:<2.5V Automatic shutdown Power consumption: OmA Applicable batteries: ternary lithium, lithium iron phosphate, lithium titanate Applicable voltage: monomer 2.5V-4.4V Product dimensions: illustrated Cable plug: 15EDG-3.81 Supporting wires: 4S/6S wiring length 30cm, 17S wiring length 40cm, color random Running indicator light: Running indicator light, on indicates that the system is running normally, off indicates that the battery voltage is below 2.5V and is in a sleep state or the switch is turned off. The system is completely shut down and the power consumption is 0 Hybrid active balancing: Adjacent cells transfer energy through capacitors, and then achieve high-precision and efficient balancing effects through high-frequency equivalent parallel connection. The low-power design simplifies complexity, and the circuit does not need to detect the voltage difference between batteries. It is in long-term operation to protect the voltage balance of batteries. The operating power consumption is only 1.5mA-2.5mA, and the single battery voltage is below 2.5V to enter the sleep state. The sleep power consumption is as low as uA Level to protect the battery from excess
