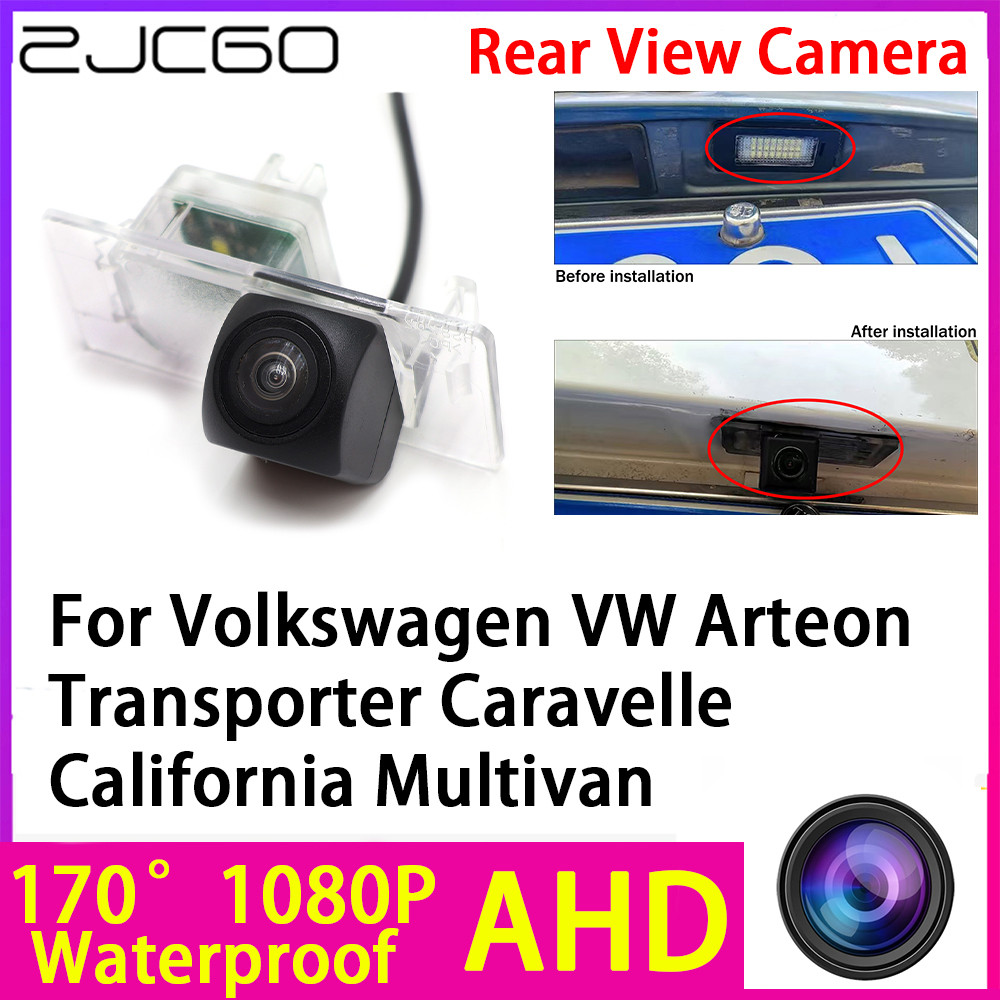

ZJCGO AHD 1080P Reverse Rear View Camera Night Vision for Volkswagen VW Arteon Transporter Cara

Note:
How to choose the right rear view camera for my car modelBefore purchasing, please ensure that the model and year of the car are consistent with the advertisement description, and check the size of the original license plate light/luggage handle/original reserved hole. If the size is not suitable, please contact customer service to confirm the correct model. Thank you
Applicable models
for Volkswagen Arteon (3H7) 2017–presentfor Volkswagen Transporter (T6/T6.1) 2015–presentfor Volkswagen Caravelle (SG) Minivan 2016-2021for Volkswagen California (SG) Minivan 2016-2021for Volkswagen Multivan VI (SGF,SGM,SGN) MPV 04/2015~2021Installation position: License plate light
Why install a reverse camera
Specifications:
AHD/1920*1080 CVBS/1280*720 with dual control, with ruler control 175 degreesAHD/CVBS 1280*720 with dual control, with ruler control 170 degrees1. Image Sensor: AHD/CVBS2. like as fisheye.170 degrees diagonal, 150 degrees horizontal3. Effective Pixels: AHD 1920*1080/CVBS 1280 x 720 Pixels.4. Water-Proof: IP705. Power: DC 12V6. Low-light Level Night Vision , 15m visible distance for night .7. TV Line : 1000 TV Line8. Electronic Shutter: 1/50 to 1/100,000 seconds, 1/60 to 1/100,000 seconds9. Video Cable Length: 6M10. Power Supply Cable Length: 1m11 .With parking assist ruler12. AHD is limited to AHD format display screens. If it is not, please cut the green line and switch to CVBS format.AHD technologyadopts advanced Y/C signal separation and analog filtering technology, which can effectively reduce color noise in highfrequency region and image reduction.1. AHD's surveillance image quality and the resolution can be equal to the Full HD 1080P level.2. Zero-delay front-end data is not encoded and compressed to the back end, full real-time, high fidelity.3. Compatible with ordinary CVBS signals, compatible with analog peripherals (including splitters, matrices, etc.)4. transmission far from the coaxial transmission of ordinary 75-3 line up to 500 meters
8 major innovative technologies
Day and night effect display
No matter day or night, reversing allows for a clear view
High definition large lens
Equipped with 6 full glass lenses and F2.0 large apertureEasily cope with day and night, truly showcase
IP70 waterproof
Dust proof, waterproof, and anti fog design
UHD Digital Signal Transmission Technology
UHD HD chip
170 ° wide angle
170 ° effective viewing angle for more reassuring reverse parkingA clear view of the rear car
Spot photos
About Camera Settings
Go to DVD setings Factory settings Reverse settings Select AHD1080P/720PIf your android unit does not support AHD signal,please cut the green wire and change to CVBS signal. Thank you.If you do not need camera parking line,please cut the white wire. Thank you.
Notes:
Please check whether the Android unit supports AHD1080P camera! If AHD1080P cannot be selected, AHD1080P cameras are not supported!Go to Car settings >> Factory settings >> Reverse (picture) settings >> Select
